商品の詳細:
|
| 部品番号: | OPA2350EA | チャネルの数:: | 2 チャネル |
|---|---|---|---|
| GBP -利益帯域幅プロダクト:: | 38のMHz | SR -スルー・レート:: | 22 V/us |
| 電圧利益dB:: | 122 dB | CMRR -同相除去比:: | 90 dB |

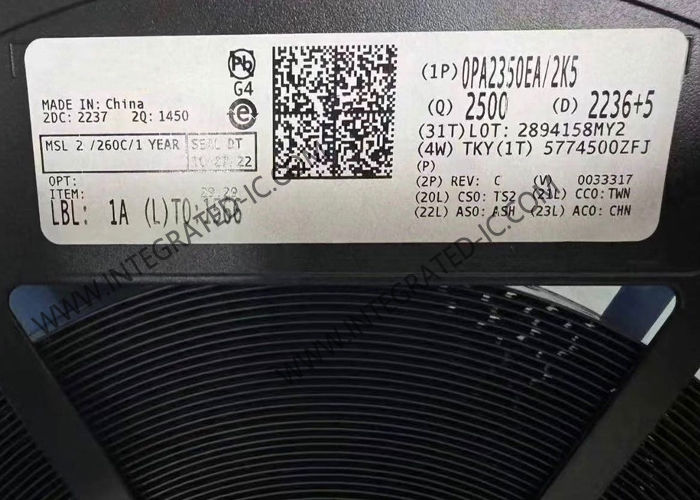

OPA2350EA Integrated Circuit Chip Dual High Speed Low-Noise Operational Amplifier
Product Description Of OPA2350EA
OPA2350EA rail-to-rail CMOS operational amplifiers are optimized for low voltage, single-supply operation. Rail-to-rail input and output, low noise (5 nV/√Hz), and high speed operation (38 MHz, 22 V/µs) make the amplifiers ideal for driving sampling Analog-to-Digital (A/D) converters. OPA2350EA also suited for cell phone PA control loops and video processing (75-Ω drive capability), as well as audio and general purpose applications. Single, dual, and quad versions have identical specifications for maximum design flexibility.
Specification Of OPA2350EA
|
|
2 Channel |
|
|
38 MHz |
|
|
22 V/us |
|
|
122 dB |
|
|
90 dB |
|
|
40 mA |
|
|
10 pA |
|
|
150 uV |
|
|
5.5 V |
|
|
2.7 V |
|
|
5.2 mA |
|
|
- 40 C |
|
|
+ 85 C |
|
en - Input Voltage Noise Density: |
7 nV/sqrt Hz |
|
Height: |
0.97 mm |
|
Input Type: |
Rail-to-Rail |
|
Length: |
3 mm |
|
Moisture Sensitive: |
Yes |
|
Operating Supply Voltage: |
5.5 V |
|
PSRR - Power Supply Rejection Ratio: |
87.96 dB |
|
Width: |
3 mm |
|
Unit Weight: |
26 mg |
Feature Of OPA2350EA
Rail-to-Rail Input
Rail-to-Rail Output (Within 10 mV)
Wide Bandwidth: 38 MHz
High Slew Rate: 22 V/µs
Low Noise: 5 nV/√Hz
Low THD+Noise: 0.0006%
Unity-Gain Stable
MicroSize Packages
Single, Dual, and Quad
Applications Of OPA2350EA
Cell Phone PA Control Loops
Driving AD Converters
Video Processing
Data Acquisition
Process Controls
Audio Processing
Communications
Active Filters
Test Equipment
