商品の詳細:
|
| 部品番号: | LT3502AEDC | 出力電流:: | 500 mA |
|---|---|---|---|
| 出力数:: | 1 出力 | 入力電圧 - Min:: | 3V |
| 入力電圧 - マックス:: | 40V | 静止電流:: | 1.5mA |

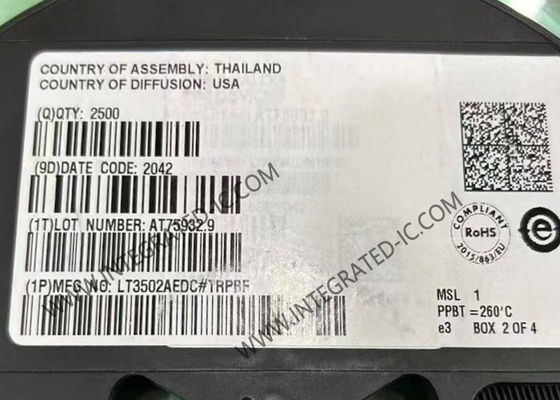

LT3502AEDC Integrated Circuit Chip 2.2MHz 500mA Step-Down Regulators DFN-8 Package
Product Description Of LT3502AEDC
LT3502AEDC current mode PWM step-down DC/DC converters with an internal 500mA power switch, in tiny 8-lead 2mm × 2mm DFN packages. The wide input voltage range of 3V to 40V makes the LT3502AEDC suitable for regulating power from a wide variety of sources, including 24V industrial supplies and automotive batteries. Its high operating frequency allows the use of tiny, low cost inductors and capacitors, resulting in a very small solution. Constant frequency above the AM band avoids interfering with radio reception, making the LT3502AEDC particularly suitable for automotive applications.
Specification Of LT3502AEDC
|
|
Adjustable |
|
|
500 mA |
|
|
1 Output |
|
|
3 V |
|
|
40 V |
|
|
1.5 mA |
|
|
2.2 MHz |
|
|
- 40 C |
|
|
+ 125 C |
|
Input Voltage: |
3 V to 40 V |
|
Operating Supply Current: |
1.5 mA |
|
Unit Weight: |
59.132 mg |
Feature Of LT3502AEDC
3V to 40V Input Voltage Range
500mA Output Current
Switching Frequency: 2.2MHz (LT3502A), 1.1MHz (LT3502)
800mV Feedback Voltage
Short-Circuit Robust
Soft-Start
Low Shutdown Current: <2μA
Internally Compensated
Internal Boost Diode
Applications Of LT3502AEDC
Automotive Systems
Battery-Powered Equipment
Wall Transformer Regulation
Distributed Supply Regulation
