商品の詳細:
|
| 部品番号: | BMP280 | 出力型: | I2C、SPI |
|---|---|---|---|
| 動作圧: | 4.35PSI | 15.95PSI （30kPa | 110kPa） | 電圧 - 供給: | 1.71V ~ 3.6V |
| 最大圧力: | 290.08PSI （2000kPa） | 動作温度: | -40°C ~ 85°C |

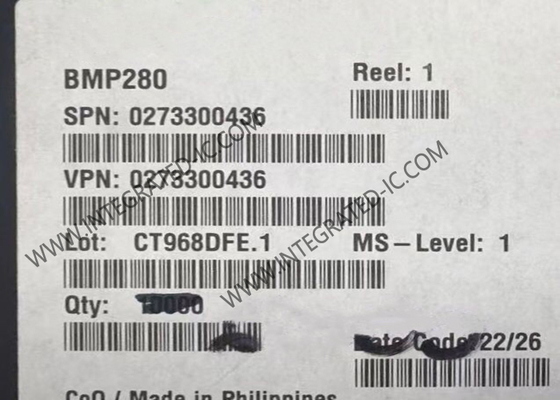

BMP280 Sensor IC 30kPa To 110kPa Digital Pressure Sensors LGA8 Sensor Chip
Product Description Of BMP280
BMP280 is an absolute barometric pressure sensor especially designed for mobile applications. The BMP280 sensor module is housed in an extremely compact package. Its small dimensions and the low power consumption allow the implementation in battery-powered devices.
Specification Of BMP280
|
Applications
|
Board Mount
|
|
Pressure Type
|
Absolute
|
|
Operating Pressure
|
4.35PSI ~ 15.95PSI (30kPa ~ 110kPa)
|
|
Output Type
|
I2C, SPI
|
|
Output
|
16b
|
|
Accuracy
|
±0.015PSI (±0.1kPa)
|
|
Voltage - Supply
|
1.71V ~ 3.6V
|
|
Port Style
|
No Port
|
|
Features
|
Standby Mode
|
|
Termination Style
|
SMD (SMT) Tab
|
|
Maximum Pressure
|
290.08PSI (2000kPa)
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SMD
|
|
Supplier Device Package
|
8-SMD
|
Features Of BMP280
Pressure range: 300... 1100 hPa (equiv. to +9000... -500 m above/below sea level)
Package: 8-pin LGA metal-lid
Footprint : 2.0 x 2.5 mm2, height: 0.95 mm
Relative accuracy(700hP~900hPa @25℃): +0.12 hPa, equiv. to +1 m
Absolute accuracy(950hPa~10150hPa, 0..40 °C) typ. +1 hPa
Temperature coefficient offset(25°C~40°C @900hPa): 1.5 Pa/K, equiv. to 12.6 cm/K
Digital interfaces
- I2C (up to 3.4 MHz)
- SPI (3 and 4 wire, up to 10 MHz)
Current consumption: 2.7μA @ 1 Hz sampling rate
Temperature range: -40°C ~ +85 °C
Applications Of BMP280
Enhancement of GPS navigation (e.g. time-to-first-fix improvement, dead-reckoning, slope detection)
Indoor navigation (floor detection, elevator detection)
Outdoor navigation, leisure and sports applications
Weather forecast
Vertical velocity indication (e.g. rise/sink speed)
