商品の詳細:
|
| Part Number: | VN5E160STR | Number of Drivers:: | 1 Driver |
|---|---|---|---|
| Number of Outputs:: | 1 Output | Output Current:: | 1 A |
| Supply Voltage - Min:: | 4.5 V | Supply Voltage - Max:: | 28 V |

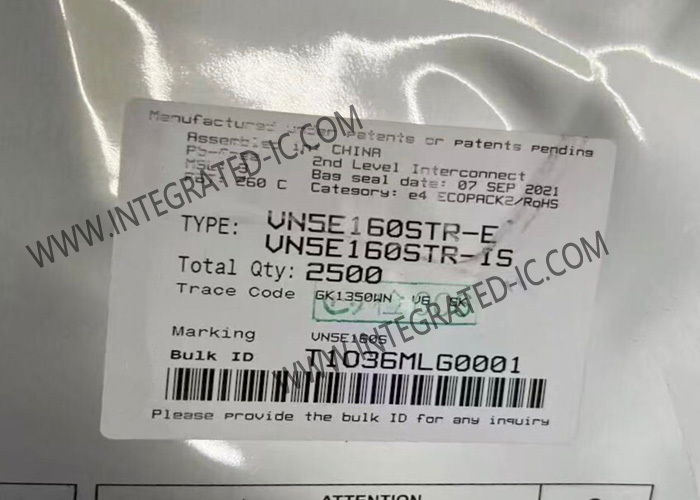

VN5E160STR Integrated Circuit Chip Single Channel High Side Driver For Automotive Applications
Product Description Of VN5E160STR
VN5E160STR is a single channel high-side driver manufactured in the VIPower M0-5 technology and housed in the tiny SO-8 package.
VN5E160STR is designed to drive automotive grounded loads delivering protection, diagnostics and easy 3V and 5V CMOS-compatible interface with any microcontroller.
Specifications Of VN5E160STR
|
|
1 Driver |
|
|
1 Output |
|
|
1 A |
|
|
4.5 V |
|
|
28 V |
|
|
- 40 C |
|
|
+ 150 C |
|
Maximum Turn-Off Delay Time: |
15 us |
|
Maximum Turn-On Delay Time: |
10 us |
|
Moisture Sensitive: |
Yes |
|
Operating Supply Current: |
3.5 mA |
|
Operating Supply Voltage: |
13 V |
|
Unit Weight: |
80 mg |
Features Of VN5E160STR
General
– Inrush current active management by power limitation
– Very low stand-by current
– 3.0V CMOS compatible inputs
– Optimized electromagnetic emissions
– Very low electromagnetic susceptibility
– In compliance with the 2002/95/EC european directive
Diagnostic functions
– Open Drain status output
– On-state open load detection
– Off-state open load detection
– Output short to VCC detection
– Overload and short to ground (power limitation) indication
– Thermal shut-down indication
Protections
– Undervoltage shut-down
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Protection against loss of ground and loss of VCC
– Over-temperature shut-down with autorestart (thermal shut-down)
– Reverse battery protected (a)
– Electrostatic discharge protection
Applications Of VN5E160STR
All types of resistive, inductive and capacitive loads
