商品の詳細:
|
| Part Number: | SI8235BB-D-ISR | Voltage - Isolation: | 2500Vrms |
|---|---|---|---|
| Common Mode Transient Immunity (Min): | 20kV/µs | Pulse Width Distortion (Max): | 5.6ns |
| Current - Peak Output: | 4A | Voltage - Output Supply: | 9.4V ~ 24V |

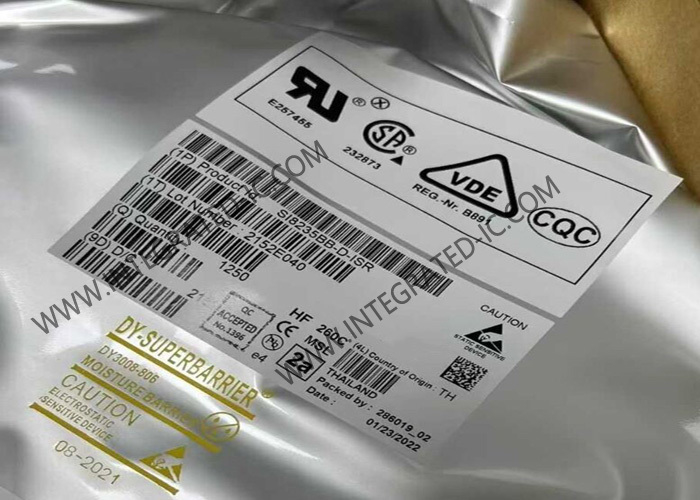

SI8235BB-D-ISR Integrated Circuit Chip 2500Vrms Isolators Drivers SOIC16 Gate Drivers
Product Overviews Of SI8235BB-D-ISR
SI8235BB-D-ISR isolated driver combines two independent, isolated drivers into a single package. SI8235BB-D-ISR is dual drivers. Peak output currents of 4.0 A. Operate with a maximum supply voltage of 24 V.
Specification Of SI8235BB-D-ISR
| Part Number: | SI8235BB-D-ISR |
| Product Category: | Galvanically Isolated Gate Drivers |
| SMD/SMT | |
| SOIC-Wide-16 | |
| 2 Channel | |
| 2.5 kVrms | |
| - 40 ℃ | |
| + 125 ℃ | |
| 1.2 W | |
| 45 ns | |
| 12 ns | |
| 12 ns | |
| Configuration: | Dual Driver |
| Features: | Industrial, High Electromagnetic Immunity |
| Input Voltage - Max: | 5.5 V |
| Input Voltage - Min: | 4.5 V |
| Logic Type: | TTL |
| Number of Drivers: | 2 Driver |
| Number of Outputs: | 2 Output |
| Operating Supply Current: | 3.5 mA |
| Output Current: | 4 A |
| Output Voltage: | 8 V |
| Product: | Isolated Gate Drivers |
| Product Type: | Galvanically Isolated Gate Drivers |
| Rds On - Drain-Source Resistance: | 2.7 Ohms |
Features Of SI8235BB-D-ISR
Two completely isolated drivers in one package
- Up to 5 kVRMS input-to-output isolation
- Up to 1500 VDC peak driver-to-driver differential voltage
HS/LS and dual driver versions
Up to 8 MHz switching frequency
4.0 A peak output
High electromagnetic immunity
Applications Of SI8235BB-D-ISR
Industrial Applications
Power delivery systems
Motor control systems
Isolated dc-dc power supplies
Lighting control systems
Plasma displays
Solar and industrial inverters
Automotive Applications
Onboard chargers
Battery management systems
Charging stations
Traction inverters
Hybrid Electric Vehicles
Battery Electric Vehicles
