商品の詳細:
|
| Part Number: | IM69D120V01 | Current Consumption: | 980 µA |
|---|---|---|---|
| Sensitivity: | -26 dBFS | SNR: | 69 dB(A) |
| Interfaces: | Digital PDM | Supply Voltage: | 1.62V - 3.60V |
| ハイライト: | IM69D120V01,IM69D120V01 Sensor IC,Digital XENSIV MEMS Microphone |
||

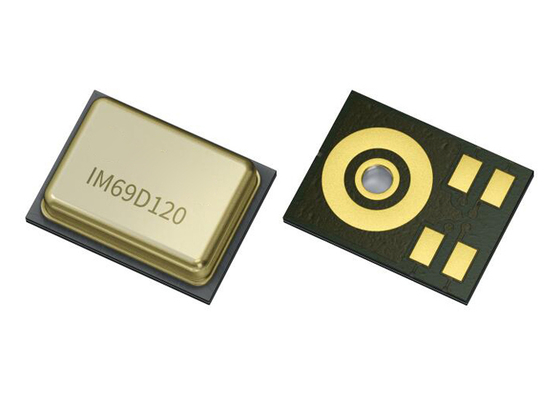

IM69D120V01 Sensor IC High Performance Digital XENSIV MEMS Microphone PG-LLGA-5-1
Product Description Of IM69D120V01
IM69D120V01 is High performance digital XENSIV MEMS microphone. IM69D120V01 is designed for applications where low self-noise (high SNR), wide dynamic range, low distortions and a high acoustic overload point is required.
Specification Of IM69D120V01
|
Type
|
MEMS (Silicon)
|
|
Output Type
|
Digital, PDM
|
|
Direction
|
Omnidirectional
|
|
Frequency Range
|
20 Hz ~ 20 kHz
|
|
Sensitivity
|
-26dB ±1dB
|
|
S/N Ratio
|
69dB
|
|
Voltage Range
|
1.62 V ~ 3.6 V
|
|
Current - Supply
|
1.3 mA
|
|
Port Location
|
Bottom
|
|
Termination
|
Solder Pads
|
|
Size / Dimension
|
0.157" L x 0.118" W (4.00mm x 3.00mm)
|
|
Height (Max)
|
0.051" (1.30mm)
|
|
Shape
|
Rectangular
|
Features Of IM69D120V01
Dynamic range of 95dB
- Signal to noise ratio of 69dB(A) SNR
- <1% total harmonic distortions up to 118dBSPL
- Acoustic overload point at 120dBSPL
Sensitivity (± 1dB) and phase (± 2° @1kHz) matched
Flat frequency response with low frequency roll oȄ at 28Hz
Very fast analog to digital conversion speed (6µs latency @1kHz
Power optimized modes determined by PDM clock frequency
Package dimensions: 4mm x 3mm x 1.2mm
PDM output
Omnidirectional pickup pattern
Typical Applications Of IM69D120V01
Devices with Voice User Interface (VUI)
- Smart speakers
- Home automation
- IOT devices
Active Noise Cancellation (ANC) headphones and earphones
High quality audio capturing
- Conference systems
- Cameras and camcorders
Industrial or home monitoring with audio pattern detection
