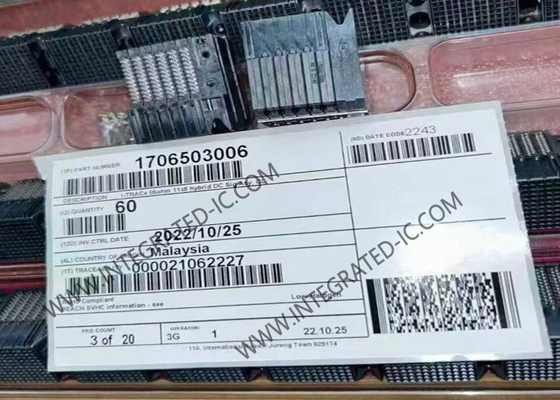

170650-3006 Connectors High-Performance High-Density Differential Signal Backplane Connector
Product Overview
The 170650-3006 is part of a high-performance, high-density, differential signal backplane connector system. It serves as the 'daughter card' or 'male' end (plug) of the connector, paired with the corresponding "backplane" or 'female' end socket, enabling reliable interconnection between daughter cards (such as line cards, processor cards) and the backplane in communication equipment, data center servers, network switches, routers, and high-end computing platforms.
This connector supports next-generation high-speed data transmission protocols including PCIe 4.0, PCIe 5.0, and 100G+ Ethernet applications, featuring excellent signal integrity and high-bandwidth performance.
Features
- High-speed performance: Designed for data transfer rates of up to 25+ Gbps (NRZ), fully supporting PCIe 4.0 (16 GT/s) and PCIe 5.0 (32 GT/s) standards with excellent eye diagram performance.
- High-Density Design: Compact pin layout maximizes connection points in limited space, facilitating device miniaturization and enhanced port density.
- Superior Signal Integrity (SI): Differential shielding reduces crosstalk and ensures signal purity during high-speed transmission.
- Impedance control: Carefully designed terminals and material selection ensure stable characteristic impedance (typically 85Ω differential impedance).
- Robust mechanical structure: Metal housing provides electromagnetic shielding (EMI) and protection while enhancing mechanical strength.
- Guidance and Positioning Features: Guide pins and polarization keys ensure proper alignment during blind insertion.
- Reliable Power Transmission: Integrates high-current power pins to provide sufficient power for devices.
- Modular design: Allows selection and combination of different power and signal modules for design flexibility.
- Thermal considerations: Metal housing structure helps conduct heat to the backplane, assisting system cooling.
Applications
- Network Communication Equipment: Core/aggregation layer routers, switches, OLTs, 5G base station baseband units (BBUs)
- Data Centre Equipment: Servers, storage arrays, leaf-spine switches
- High-Performance Computing (HPC) Systems: Computing blades, FPGA accelerator cards
- Military and Aerospace: High-reliability computing and communication platforms
