商品の詳細:
|

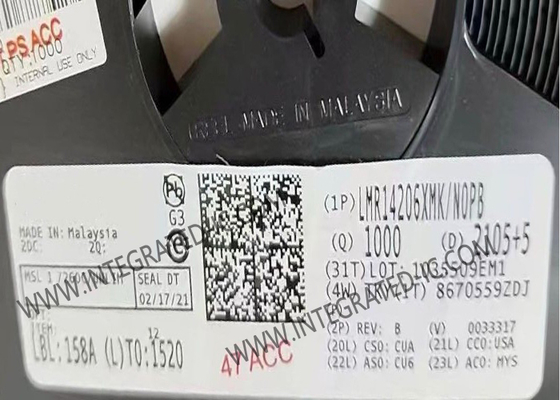

| 部品番号: | LMR14206XMK | 出力電圧：: | 765 mVから34ボルト |
|---|---|---|---|
| 出力電流：: | 600 mA | 出力の数：: | 1出力 |
| 入力電圧-min：: | 4.5 v | 入力電圧-max：: | 42ボルト |
| ハイライト: | LMR14206XMK step-down voltage regulator,600mA integrated circuit chip,1.25MHz step-down voltage regulator |
||
LMR14206XMK is a PWM DC/DC buck (step-down) regulator. With a wide input range from 4.5V-42V, they are suitable for a wide range of applications such as power conditioning from unregulated sources. They feature a low RDSON (0.9Ω typical) internal switch for maximum efficiency (85% typical). Operating frequency is fixed at 1.25 MHz allowing the use of small external components while still being able to have low output voltage ripple. Soft-start can be implemented using the shutdown pin with an external RC circuit allowing the user to tailor the softstart time to a specific application.
| Function | Step-Down |
|---|---|
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 0.765V |
| Voltage - Output (Max) | 34V |
| Current - Output | 600mA |
| Frequency - Switching | 1.25MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
