商品の詳細:
|
| 部品番号: | NCP3063DR2G | 出力電圧: | 3.3 v |
|---|---|---|---|
| 出力電流: | 1.5A | 最高入れられた電圧-: | 40V |
| 頻度の切り替え: | 150のkHz | 動作温度: | 0°C | 70°C （TJ） |

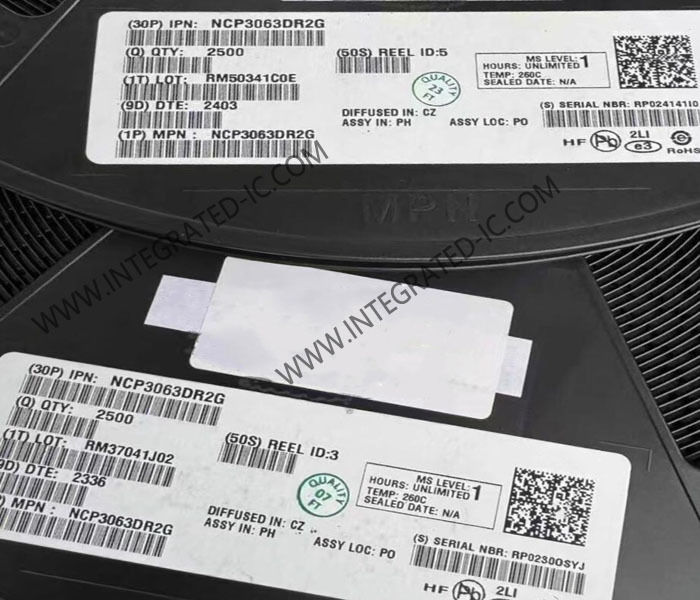

NCP3063DR2G Integrated Circuit Chip 1.5A Buck Boost Inverting Switching Regulator
Product Description Of NCP3063DR2G
NCP3063DR2G is a 1.5A, Step-Up/Down/Inverting Switching Regulators, it consist of an internal temperature compensated reference, comparator, a controlled duty cycle oscillator with an active current limit circuit, a driver and a high current output switch. This series was specifically designed to be incorporated in Step−Down, Step−Up and Voltage−Inverting applications with a minimum number of external components.
Specification Of NCP3063DR2G
|
Function
|
Step-Up, Step-Down
|
|
Output Configuration
|
Positive or Negative
|
|
Topology
|
Buck, Boost
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3V
|
|
Voltage - Input (Max)
|
40V
|
|
Voltage - Output (Min/Fixed)
|
1.25V
|
|
Voltage - Output (Max)
|
40V (Switch)
|
|
Current - Output
|
1.5A (Switch)
|
|
Frequency - Switching
|
150kHz
|
|
Synchronous Rectifier
|
No
|
|
Operating Temperature
|
0°C ~ 70°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
Features Of NCP3063DR2G
Operation up to 40 V Input
Low Standby Current
Output Switch Current to 1.5 A
Output Voltage Adjustable
Frequency operation up to 150 KHz
Precision 1.5% Reference
Internal thermal Shutdown with hysteresis
Cycle-by-Cycle Current Limiting
Applications Of NCP3063DR2G
Step-Down, Step-Up and Inverting supply applications
Battery Chargers
High Power LED Lighting
NCV3063 Available for Automotive Applications
