商品の詳細:
|
| 部品番号: | IRFP260NPBF | トランジスタ極性:: | nチャネル |
|---|---|---|---|
| チャネルの数:: | 1チャンネル | Vds - ドレイン-ソース ブレークダウン電圧:: | 200V |
| Id - 連続ドレイン電流:: | 50 a | Rds オン - ドレイン - ソース間抵抗:: | 40ミリオーム |

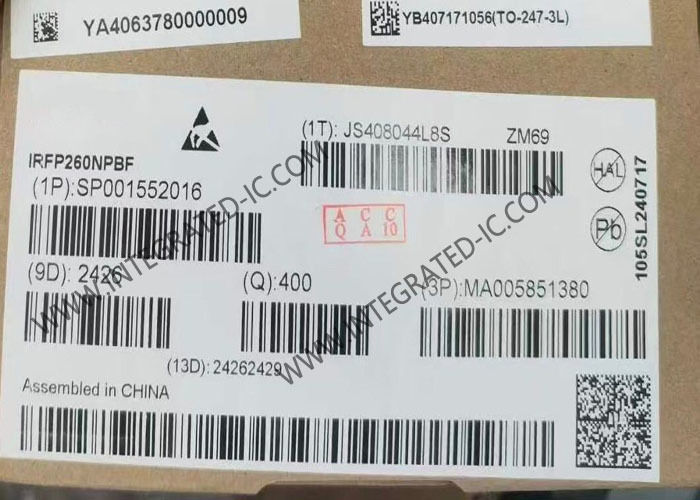

IRFP260NPBF Integrated Circuit Chip 200V Single N-Channel Power MOSFET Transistors
Product Description Of IRFP260NPBF
IRFP260NPBF power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches as well as battery powered applications.The devices are available in a variety of surface mount and through-hole packages with industry standard footprints for ease of design.
Specifications Of IRFP260NPBF
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
200 V |
|
Current - Continuous Drain (Id) @ 25°C |
50A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
40mOhm @ 28A, 10V |
|
Vgs(th) (Max) @ Id |
4V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
234 nC @ 10 V |
|
Vgs (Max) |
±20V |
|
Input Capacitance (Ciss) (Max) @ Vds |
4057 pF @ 25 V |
|
Power Dissipation (Max) |
300W (Tc) |
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
Features Of IRFP260NPBF
Planar cell structure for wide SOA
Optimized for broadest availability
Product qualification according to JEDEC
Silicon optimized for applications
Industry standard through-hole power
High current rating
Benefits Of IRFP260NPBF
Increased ruggedness
Wide availability at distribution
Industry standard qualification level
High performance, low-frequency
Drop-in replacement with standard pinout
High current carrying capability
Applications Of IRFP260NPBF
DC motors
Inverters
SMPS
Lighting
Load switches
