商品の詳細:
|
| 部品番号: | MAX16895AALT+T | 電圧-境界: | 0.5V |
|---|---|---|---|
| 監視された電圧数: | 1 | パッケージ: | 6-µDfn |
| サイズ: | 1.5mm x 1mm | タイプ: | 電圧モニタリング回路 |
| ハイライト: | MAX16895AALT+T,MAX16895AALT+T Integrated Circuit Chip,μDFN6 Voltage-Monitoring Circuits |
||

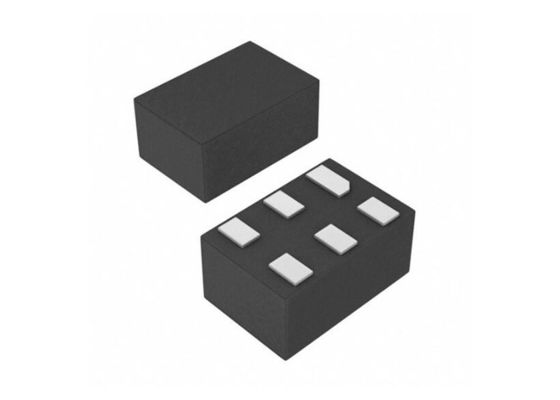

MAX16895AALT+T Integrated Circuit Chip Supervisory Circuits μDFN6 Voltage-Monitoring Circuits
Product Description Of MAX16895AALT+T
MAX16895AALT+T is a small, low power, voltage-monitoring circuits with sequencing capability. This miniature devices offer tremendous flexibility with an adjustable threshold capable of monitoring down to 0.5V and an external capacitor-adjustable time delay. MAX16895AALT+T is ideal for use in power-supply sequencing, reset sequencing, and power-switching applications. Multiple devices can be cascaded for complex sequencing applications.
Specification Of MAX16895AALT+T
|
Type
|
Sequencer
|
|
Number of Voltages Monitored
|
1
|
|
Voltage - Threshold
|
0.5V
|
|
Output
|
Push-Pull, Totem Pole
|
|
Reset
|
Active High
|
|
Reset Timeout
|
Adjustable/Selectable
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
6-WFDFN
|
|
Supplier Device Package
|
6-µDFN (1.5x1)
|
Features Of MAX16895AALT+T
1% Accurate Adjustable Threshold Over Temperature
Operate from VCC of 1.5V to 5.5V
Capacitor-Adjustable Delay
Active-High/Low Enable Input Options
Active-High/Low Output Options
Open-Drain (28V Tolerant)/Push-Pull Output Options
Low Supply Current (10μA, typ)
Fully Specified from -40°C to +125°C
Ultra-Small 6-Pin μDFN Package
Applications Of MAX16895AALT+T
Medical Equipment
Intelligent Instruments
Portable Equipment
Computers/Servers
Critical µP Monitoring
Set-Top Boxes
Telecom
