商品の詳細:
|
| 部品番号: | AD8630WARZ | チャネルの数:: | 4チャンネル |
|---|---|---|---|
| GBP -利益帯域幅プロダクト:: | 2.5 MHz | SR -スルー・レート:: | 1 V/us |
| Vos - 入力オフセット電圧:: | 1 uV | Ib - 入力バイアス電流:: | 300 pA |
| ハイライト: | AD8630WARZ,AD8630WARZ Integrated Circuit Chip,Zero-Drift Operational Amplifier |
||

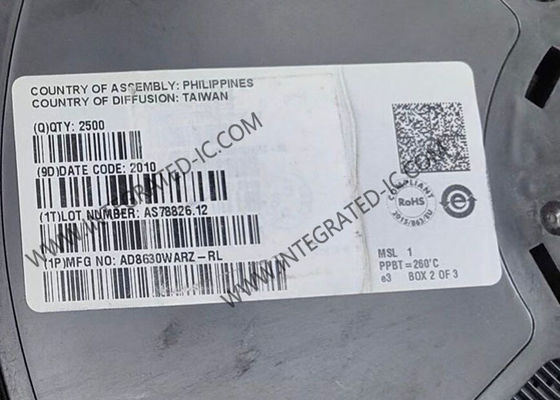

AD8630WARZ Integrated Circuit Chip Zero-Drift Single-Supply Rail-To-Rail Input/Output Operational Amplifier
Product Description Of AD8630WARZ
AD8630WARZ amplifier has ultralow offset, drift, and bias current. The AD8630WARZ is wide bandwidth auto-zero amplifiers featuring rail-to-rail input and output swing and low noise. Operation is fully specified from 2.7 V to 5 V single supply (±1.35 V to ±2.5 V dual supply).
Specifications Of AD8630WARZ
|
Amplifier Type
|
Zero-Drift
|
|
Number of Circuits
|
4
|
|
Output Type
|
Rail-to-Rail
|
|
Slew Rate
|
1V/µs
|
|
Gain Bandwidth Product
|
2.5 MHz
|
|
-3db Bandwidth
|
2.5 MHz
|
|
Current - Input Bias
|
30 pA
|
|
Voltage - Input Offset
|
1 µV
|
|
Current - Output / Channel
|
30 mA
|
|
Voltage - Supply Span (Min)
|
2.7 V
|
|
Voltage - Supply Span (Max)
|
5 V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
Features Of AD8630WARZ
Lowest auto-zero amplifier noise
Low offset voltage: 1 µV
Input offset drift: 0.002 µV/°C
Rail-to-rail input and output swing
5 V single-supply operation
High gain, CMRR, and PSRR: 130 dB
Very low input bias current: 100 pA maximum
Low supply current: 1.0 mA
Overload recovery time: 50 µs
No external components required
Qualified for automotive applications
Applications Of AD8630WARZ
Automotive sensors
Pressure and position sensors
Strain gage amplifiers
Medical instrumentation
Thermocouple amplifiers
Precision current sensing
Photodiode amplifiers
