商品の詳細:
|
| 部品番号: | 744272471 | インダクタンス: | 470 uH |
|---|---|---|---|
| インピーダンス: | 1.75 KOHMS | 許容範囲: | 40% |
| 最高DCの抵抗: | 65のmOhms | 最高DCの流れ: | 1.6 A |

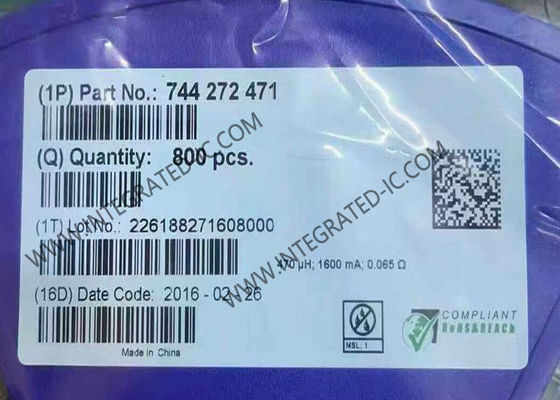

744272471 Integrated Circuit Chip Common Mode Line Filter 470µH Common Mode Chokes
Product Description Of 744272471
744272471 is 470µH, SMT Common Mode Line Filter——Common Mode Chokes, Surface Mount.
Specification Of 744272471
|
Filter Type
|
Power, Signal Line
|
|
Number of Lines
|
2
|
|
Impedance @ Frequency
|
1.75 kOhms @ 10 MHz
|
|
Inductance @ Frequency
|
470 µH @ 100 kHz
|
|
Current Rating (Max)
|
1.6A
|
|
DC Resistance (DCR) (Max)
|
65mOhm
|
|
Voltage Rating - DC
|
80V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Size / Dimension
|
0.394" L x 0.343" W (10.00mm x 8.70mm)
|
|
Height (Max)
|
0.256" (6.50mm)
|
|
Package / Case
|
Horizontal, 4 PC Pad
|
Features Of 744272471
High impedance up to 13000 Ω
High current up to 2500 mA
Rated voltage: 80 VDC (42 VAC)
Flammability corresponding to UL 94 V-0
Climatic category 40/125/21
Applications Of 744272471
Current compensated choke for data and signal lines
Power supply system
Signal and sensor lines
Suppression of common mode noise
