商品の詳細:
|
| 部品番号: | IPP200N15N3G | トランジスタ極性:: | nチャネル |
|---|---|---|---|
| チャネルの数:: | 1チャンネル | Vds - ドレイン-ソース ブレークダウン電圧:: | 150V |
| Id - 連続ドレイン電流:: | 50 a | Rds オン - ドレイン - ソース間抵抗:: | 20ミリオーム |

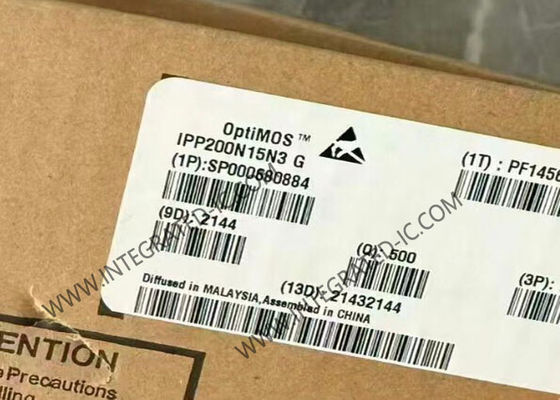

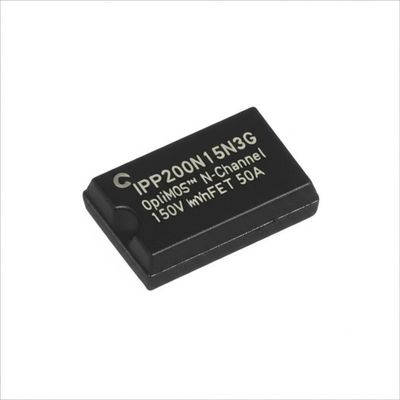

IPP200N15N3G Integrated Circuit Chip OptiMOS™ 3 N-Channel 150V 50A Power MOSFET Transistors
Product Description Of IPP200N15N3G
IPP200N15N3G 150V OptiMOS™ achieves a reduction in R DS(on) of 40% and of 45% in figure of merit (FOM) compared to the next best competitor. This drastic improvement opens new possibilities like moving from leaded packages to SMD packages or effectively replacing two old parts with one OptiMOS™ part.
Specifications Of IPP200N15N3G
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
150 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
50A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
8V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
20mOhm @ 50A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 90µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
31 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1820 pF @ 75 V
|
|
Power Dissipation (Max)
|
150W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
Features Of IPP200N15N3G
Excellent switching performance
World’s lowest R DS(on)
Low Q g and Q gd
Excellent gate charge
RoHS compliant-halogen free
MSL1 rated
Benefits Of IPP200N15N3G
Environmentally friendly
Increased efficiency
Highest power density
Less paralleling required
Smallest board-space consumption
Easy-to-design products
Applications Of IPP200N15N3G
48 V intermediate bus converter (IBC)
Power conversion
