商品の詳細:
|
| 部品番号: | OPA320AIDBVR | チャネルの数:: | 1チャンネル |
|---|---|---|---|
| GBP -利益帯域幅プロダクト:: | 20 MHz | SR -スルー・レート:: | 10 V/us |
| Vos - 入力オフセット電圧:: | 紫外線40 | Ib - 入力バイアス電流:: | 0.2 pA |

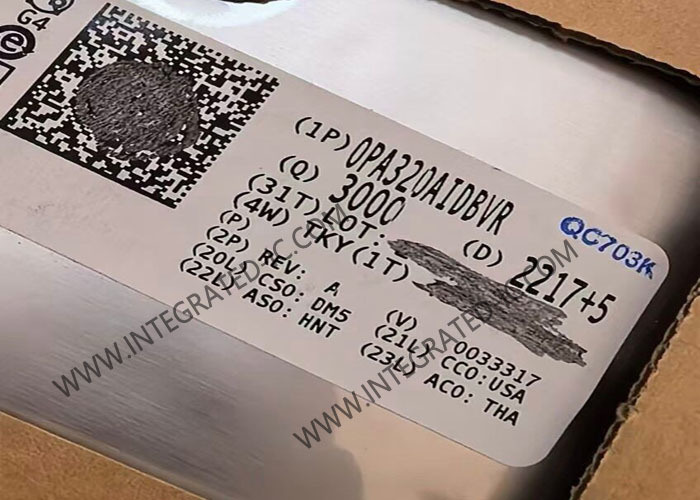

OPA320AIDBVR Integrated Circuit Chip Precision 20MHz Low Noise CMOS Operational Amplifier With Shutdown
Product Description Of OPA320AIDBVR
OPA320AIDBVR is a new generation of precision, low-voltage CMOS operational amplifiers optimized for very low noise and wide bandwidth while operating on a low quiescent current of only 1.45 mA.
Specifications Of OPA320AIDBVR
|
Number of Circuits
|
1
|
|
Output Type
|
Rail-to-Rail
|
|
Slew Rate
|
10V/µs
|
|
Gain Bandwidth Product
|
20 MHz
|
|
Current - Input Bias
|
0.2 pA
|
|
Voltage - Input Offset
|
40 µV
|
|
Current - Supply
|
1.5mA
|
|
Current - Output / Channel
|
65 mA
|
|
Voltage - Supply Span (Min)
|
1.8 V
|
|
Voltage - Supply Span (Max)
|
5.5 V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
Features Of OPA320AIDBVR
Precision with Zero-Crossover Distortion:
Low Offset Voltage: 150 µV (Maximum)
High CMRR: 114 dB
Rail-to-Rail I/O
Low Input Bias Current: 0.9 pA (Maximum)
Low Noise: 7 nV/√Hz at 10 kHz
Wide Bandwidth: 20 MHz
Slew Rate: 10 V/µs
Quiescent Current: 1.45 mA/Ch
Single-Supply Voltage Range: 1.8 V to 5.5 V
OPA320S and OPA2320S:
IQ in Shutdown Mode: 0.1 µA
Unity-Gain Stable
Small Packages:
SOT-23, VSSOP, SON, and SOIC
Applications Of OPA320AIDBVR
High-Z Sensor Signal Conditioning
Transimpedance Amplifiers
Test and Measurement Equipment
Programmable Logic Controllers (PLCs)
Motor Control Loops
Communications
Input/Output ADC/DAC Buffers
Active Filters
