商品の詳細:
|
| 部品番号: | STNRG012TR | 周波数 - 切り替え: | 15MHz |
|---|---|---|---|
| 電圧 - 供給: | 9.5V~19V | 動作温度: | -40°C〜150°C（TJ） |
| 入力電圧範囲: | 最大305 VAC | タイプ: | デジタルコンボマルチモードPFCコントローラー |
| ハイライト: | STNRG012TR,STNRG012TR Integrated Circuit Chip,15MHz Multi Mode PFC Controller |
||

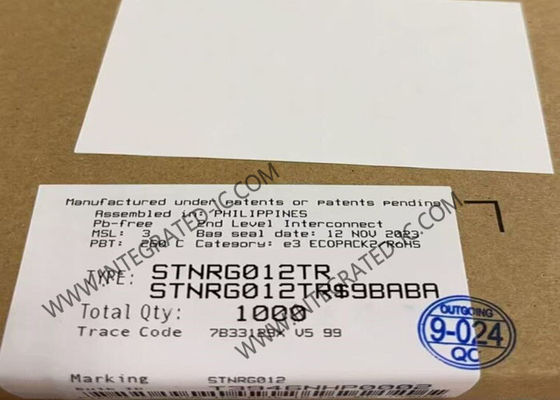

STNRG012TR Integrated Circuit Chip Power Factor Correction 15MHz Multi Mode PFC Controller
Product Description Of STNRG012TR
STNRG012TR embodies a multi-mode (Transition-Mode and DCM) PFC controller, a high-voltage double-ended controller for LLC resonant half-bridge, an 800 V-rated start-up generator and a sophisticated digital engine that manage optimal operation of three blocks. STNRG012TR manages both input line AC or DC.
STNRG012TR comes in a 20-pin SO package and offers an advanced solution for power-factor-corrected high-efficiency converters supposed to comply with the most stringent energy saving regulations.
Specification Of STNRG012TR
|
Mode
|
Discontinuous Conduction (DCM)
|
|
Frequency - Switching
|
15MHz
|
|
Voltage - Supply
|
9.5V ~ 19V
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
20-SO
|
Features Of STNRG012TR
Digital combo multi-mode PFC + time-shift LLC resonant half-bridge controller
Management of both AC and DC input
Input voltage range up to 305 VAC
On-board 800 V start-up circuit, line sense
Enhanced fixed-on-time multi-mode TM PFC controller with input voltage feed-forward, new thd optimizer and frequency limitation
Complete set of PFC protections
Time-shift control of resonant half-bridge
Brownout protection
Complete set of half-bridge protections
S020 package
Applications Of STNRG012TR
Street lighting
Home lighting
Industrial
