商品の詳細:
|
| 部品番号: | TLE7184F | 供給電流の動作: | 19 mA |
|---|---|---|---|
| 電圧 - 供給: | 6V~45V | 構成: | 3フェーズ |
| 電圧クラス: | 55ボルト | 動作温度: | -40°C〜150°C（TJ） |
| ハイライト: | Integrated 5V Vreg-Controller System IC,6V ~ 45V Supply Voltage Integrated Circuit Chip,-40°C ~ 150°C Operating Temperature MOTIX IC |
||

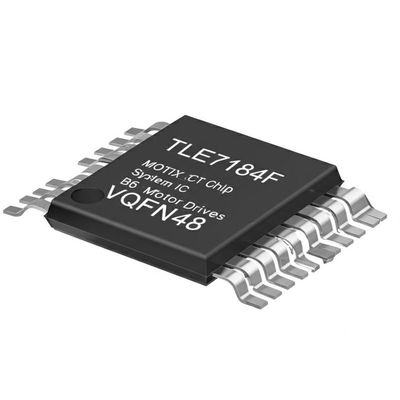

MOTIX™ TLE7184F is a system IC with 3-phase driver and an integrated 5V Vreg-controller to power a MCU.
The MOTIX™ TLE7184F is a system IC for Brushless Motor Control. It incorporates a voltage supply for a µC, a bridge driver for a B6 configuration, and an application typical PWM interface. Its exposed pad package allows usage even at high ambient temperatures.
| Motor Type | AC, DC | Brushless DC (BLDC), Brushed DC |
|---|---|
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Interface | PWM |
| Technology | Power MOSFET |
| Voltage - Supply | 6V ~ 45V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VQFN Exposed Pad |
| Supplier Device Package | PG-VQFN-48-72 |
