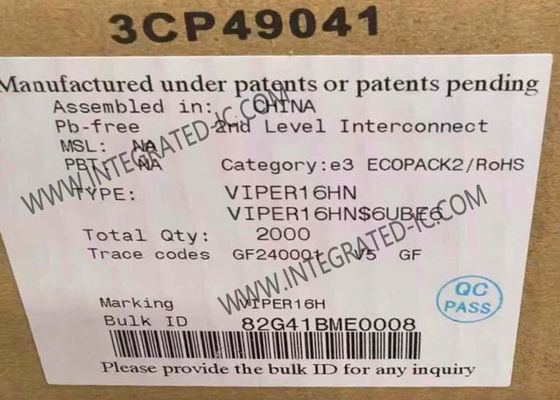

VIPER16HN Integrated Circuit Chip Energy Saving 6W High Voltage Converter With Direct Feedback
Product Description
The VIPER16HN is an off-line converter featuring an 800 V avalanche rugged power section, PWM controller, and multiple protection mechanisms. It eliminates the need for an auxiliary bias winding by powering itself directly from the rectified mains. Advanced frequency jittering reduces EMI filter costs, while burst mode operation and low power consumption help meet energy-saving regulations.
Specifications
| Output Isolation |
Either |
| Internal Switch(s) |
Yes |
| Voltage - Breakdown |
800V |
| Topology |
Buck, Buck-Boost, Flyback |
| Voltage - Start Up |
13 V |
| Voltage - Supply (Vcc/Vdd) |
11.5V ~ 23.5V |
| Duty Cycle |
70% |
| Frequency - Switching |
115kHz |
| Power (Watts) |
10 W |
| Fault Protection |
Current Limiting, Over Temperature |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
Key Features
- 800 V avalanche rugged power section
- PWM operation with frequency jittering for low EMI
- Operating frequency: 60 kHz for L type, 115 kHz for H type
- No need for auxiliary winding in low power applications
- Standby power < 30 mW at 230 VAC
- Adjustable current limiting set point
- On-board soft-start
- Safe auto-restart after fault conditions
- Hysteretic thermal shutdown
Applications
Replacement of capacitive power supply, auxiliary power supply for appliances, power metering, and LED drivers.
Related Products
| Part Number |
Package |
| 1EDI3021AS |
DSO-20 |
| TLE9180D21QK |
LQFP-64 |
| 1ED3461MU12M |
DSO-16 |
| 1EDI3023AS |
DSO-20 |
| 1EDI2004AS |
DSO-36 |
| TLE9180D32QK |
LQFP-64 |
| 1EDI20I12MH |
DSO-8 |
| 2EDR6259X |
DSO-14 |
| PMC41420 |
QFN |
| PXE1211CPMG003 |
VQFN-40 |
| PMC41430 |
QFN |
| PXC1331CPNG003 |
QFN |
| TLE9868QXB20 |
VQFN-48 |
| IPA95R450PFD7 |
TO220-3 |
| ICC80QSG |
DSO-8 |
| ICE5QR1680BG |
DSO-12 |
| ICE2QR2280Z |
DIP-7 |
| ICE2QR0680Z |
DIP-7 |
| ICE3BR4765JG |
DSO-12 |
| ICE5QR4780BG |
DSO-12 |
| ICE5QR0680BG |
DSO-12 |
| ICE2QR4765G |
DSO-12 |
| XDPS2201D |
DSO-14 |
| CYPD3184A1-24LQXQ |
VQFN-24 |
| CYPAS111A1-24LQXQ |
VQFN-24 |
| XDPS2201V |
DSO-14 |
| CYPAP112A3-10SXQ |
DSO-10 |
| CYPAP211A1-14SXI |
DSO-14 |
| CYPAP212A1-14SXI |
DSO-14 |
| ILD8150E |
DSO-8 |
