商品の詳細:
|
| 部品番号: | 24AA512T-I/CS17K | メモリサイズ: | 32kbit |
|---|---|---|---|
| インターフェースの種類: | 2本のワイヤー,I2C | 組織: | 4k × 8 |
| クロック周波数: | 400kHz | 電圧 - 供給: | 1.7V~5.5V |
| ハイライト: | 512Kbit Memory IC Chip,1.7V to 5.5V Serial EEPROM,400 kHz EEPROM Memory IC |
||

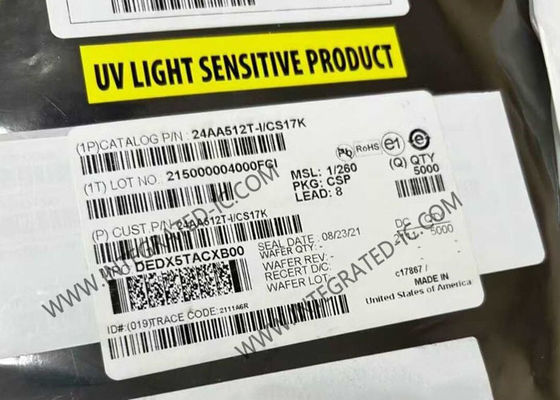

The 24AA512T-I/CS17K is a 512Kb (64K x 8) Serial Electrically Erasable PROM (EEPROM) designed for advanced, low-power applications including personal communications and data acquisition systems.
This memory IC operates across a broad voltage range (1.7V to 5.5V) and features a page write capability of up to 128 bytes of data. It supports both random and sequential reads up to the 512K boundary, with functional address lines allowing up to eight devices on the same bus for expanded address space.
| Memory Type | Non-Volatile |
|---|---|
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 512Kbit |
| Memory Organization | 64K x 8 |
| Memory Interface | I2C |
| Clock Frequency | 400 kHz |
| Write Cycle Time | 5ms (Word, Page) |
| Access Time | 900 ns |
| Voltage Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package/Case | 8-UFBGA, CSPBGA |
| Supplier Device Package | 8-CSP |
| Part Number | Package |
|---|---|
| MC17XSG500DEK | 40-VFQFN |
| MPF5024CMBA0ES | 40-VFQFN |
| MC17XS6400DEK | 32-HSOP |
| MPF5023CMBA0ES | 40-VFQFN |
| MPF5023CVNA0ES | 40-VFQFN |
| MPF5023CMMA0ES | 40-VFQFN |
| MC08XS6421DEK | 32-HSOP |
| MC34PF8100FJEP | HVQFN-56 |
| MC34VR5100A2EP | HVQFN-48 |
| MC07XS6517DEK | 54-HSOP |
A: Yes, all products are original, new original import is our purpose.
A: We are ISO 9001:2015 Certified Company and member of ERAI.
A: Yes, we support sample order and small order. Sample cost is different according to your order or project.
A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
