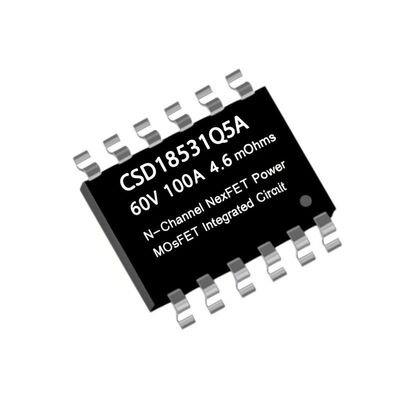

商品の詳細:
|
| 部品番号: | CSD18531Q5A | Vds -下水管源の絶縁破壊電圧: | 60V |
|---|---|---|---|
| ID -連続的な下水管の流れ: | 100 A | Qg -ゲート充満: | 36nC |
| Rdsのオン下水管源の抵抗: | 4.6mOhms | PD-電力散逸: | 156 W |
| ハイライト: | 60V Power MOSFET,100A NexFET,4.6 mOhms Integrated Circuit Chip |
||
| Series | NexFET™ |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3840 pF @ 30 V |
| Power Dissipation (Max) | 3.1W (Ta), 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSONP (5x6) |
| Package / Case | 8-PowerTDFN |
| Part Number | Package |
|---|---|
| MC07XSG517DEK | 54-HSOP |
| MC33PF3001A6ES | HVQFN-48 |
| MC34VR5100A0EP | HVQFN-48 |
| MC33PF8100F3ES | HVQFN-56 |
| PCA9421BSZ | HVQFN-24 |
| MFS2323BMBA5EP | HVQFN-48 |
| MFS2320BMBA0EP | HVQFN-48 |
| MFS2303BMBA3EP | HVQFN-48 |
| MFS2300BMBA0EP | HVQFN-48 |
| PCA9420FUKZ | WLCSP-25 |
| PCA9420KUKZ | WLCSP-25 |
| PCA9420AUKZ | WLCSP-25 |
| PCA9421UKZ | WLCSP-25 |
| MFS2320BMBB1EP | HVQFN-48 |
| TEA9026T/1Y | 16-SOIC |
| MFS2323BMBA0EP | HVQFN-48 |
| MFS2323BMBA1EP | HVQFN-48 |
| FS2323BMMA0EP | HVQFN-48 |
| TEA9123BTY | 16-SOIC |
| MPF5020CMMACES | 40-VFQFN |
