LAN7801T-V/9JXVAO Ethernet IC USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller with RGMII

LAN7801T-V/9JXVAO Ethernet IC USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller with RGMII
LAN7801T-V/9JXVAO Ethernet IC USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller with RGMII

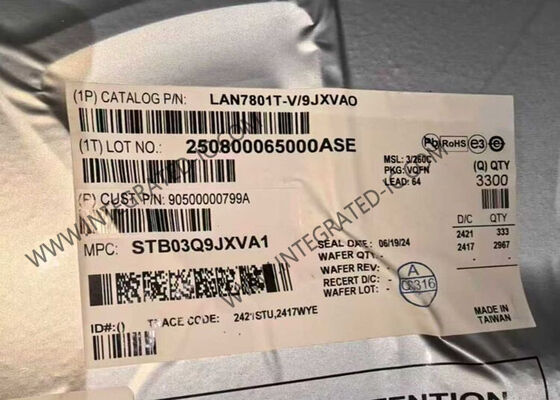

大画像 :  LAN7801T-V/9JXVAO Ethernet IC USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller with RGMII

商品の詳細:
起源の場所: CN
ブランド名: Original Factory
証明: Lead free / RoHS Compliant
モデル番号: LAN7801T-V/9JXVAO
お支払配送条件:
最小注文数量: 10
価格: Contact for Sample
パッケージの詳細: SQFN-64
受渡し時間: 3~5営業日
支払条件: TT
供給の能力: 1日あたり10000個

LAN7801T-V/9JXVAO Ethernet IC USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller with RGMII

記述
部品番号: LAN7801T-V/9JXVAO タイプ: イーサネット IC
I/O電源電圧: 1.8V~3.3V パッケージ: SQFN-64
ハイライト:

USB 3.1 Gen 1 Ethernet IC

,

10/100/1000 Ethernet Controller

,

RGMII USB to Ethernet Controller

LAN7801T-V/9JXVAO Ethernet IC SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller With RGMII
The LAN7801T-V/9JXVAO is a high-performance USB 3.1 Gen 1 to 10/100/1000 Ethernet controller with RGMII interface. This cost-effective connectivity solution serves applications ranging from automotive infotainment/ADAS and notebook/tablet docking stations to set-top boxes, USB port replicators, embedded systems, and test instrumentation.
Key Highlights
  • Single Chip SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller
  • RGMII output to external Gigabit PHYs
  • Integrated 10/100/1000 Ethernet MAC with Full-Duplex Support
  • Integrated USB 3.1 Gen 1 SS Device Controller and PHY
  • Low Power Consumption with Energy Efficient Ethernet IEEE 802.3az compliance
  • Wake on LAN (WoL) support
  • Configuration via One Time Programmable (OTP) Memory
  • NetDetach for automatic USB attach/detach with Ethernet cable connection
  • AEC-Q100 qualified for automotive applications
Technical Features
USB 3.1 Gen 1 Device Controller:
  • Supports SS (5 Gbps), HS (480 Mbps), and FS (12 Mbps) modes
  • Four endpoints supported
  • Vendor specific commands support
  • Remote wakeup capability
10/100/1000 Ethernet Controller:
  • Compliant with IEEE802.3/802.3u/802.3ab/802.3az standards
  • 10BASE-T/100BASE-TX/1000BASE-T support
  • Full- and half-duplex capability (full-duplex only at 1000 Mbps)
Controller Modes:
  • Microsoft AOAC support (Always On Always Connected)
  • Microsoft NDIS 6.2 large send offload
  • Full-duplex flow control
  • Loop-back modes
  • IEEE 802.1q VLAN tagging support
  • VLAN tag based packet filtering (all 4096 tags)
  • Flexible address filtering with 33 exact matches and 512-bit hash filter
  • Promiscuous unicast/multicast modes
  • Comprehensive statistical counters
  • PME pin support
Frame Features:
  • 32 wake-up frame patterns support
  • Preamble generation and removal
  • Automatic 32-bit CRC generation and checking
  • 9 KB jumbo frame support
  • Automatic payload padding and pad removal
  • Rx/Tx checksum offloads for IPv4, IPv6, TCP, UDP, IGMP, ICMP
  • IEEE 802.1q VLAN tag add/strip capability
Applications
  • Automotive Infotainment and ADAS systems
  • Notebook and Tablet Docking Stations
  • Detachable Laptops
  • USB Port Replicators
  • Standalone USB to Ethernet Dongles
  • Embedded Systems and Consumer Electronics
  • Set-Top Boxes and Video Recorders
  • Test Instrumentation and Industrial Equipment
