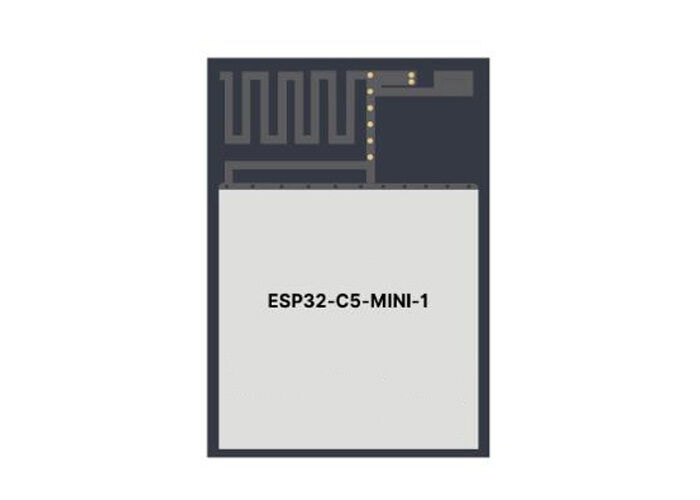

ESP32-C5-MINI-1-N4 Wireless Communication Module 4MB Dual-Band WiFi Module

ESP32-C5-MINI-1-N4 Wireless Communication Module 4MB Dual-Band WiFi Module

Product Description Of ESP32-C5-MINI-1-N4

ESP32-C5-MINI-1-N4 is an ultra-compact wireless module designed specifically for the Internet of Things (IoT), wearable devices and space-constrained applications. The device integrates dual-band Wi-Fi 6 (802.11ax), Bluetooth 5 (LE) and Zigbee/Thread (802.15.4), making it the industry’s first RISC-V IoT solution to support all three protocols in a single package, combining high performance, low power consumption and high security. The ESP32-C5-MINI-1-N4 features an on-board PCB antenna, offering plug-and-play functionality suitable for most general-purpose scenarios.

Specification Of ESP32-C5-MINI-1-N4

1. Processor and Memory
CPU: 32-bit RISC-V single-core processor, clocked at up to 240 MHz
On-chip memory:
ROM: 320 KB
SRAM: 384 KB (HP) + 16 KB (LP)
External Storage: 4 MB Quad SPI Flash (on-board)
2. Wireless Connectivity
Wi-Fi 6 (802.11ax/b/g/n)
Frequency Bands: 2.4 GHz & 5 GHz dual-band
Mode: 1T1R
Data Rate: Up to 150 Mbps
Features: Supports OFDMA, TWT (Target Wake Time), high efficiency and low power consumption
Bluetooth 5.2 (BLE)
Data rate: 125 Kbps to 2 Mbps
Features: Supports long-range broadcasting, multicast groups, AoA/AoD positioning
IEEE 802.15.4
Supports Zigbee 3.0 & Thread 1.4 protocols
Data rate: 250 Kbps

Features Of ESP32-C5-MINI-1-N4

ESP32-C5 embedded, 32-bit RlSC-V single-core microprocessor, up to 240 MHz
ROM: 320 KB
HP SRAM: 384 KB
LP SRAM: 16 KB
SPI flash: 4 MB
1T1R in 2.4 and 5 GHz dual band
Operating frequency: 2412~ 2484 MHz,5180~5885MHz
Data rate up to 150 Mbps
lEEE 802.11ax-compliant
Bluetooth LE: Bluetooth Core 6.0 certified
Bluetooth mesh 1.1
High power mode (20 dBm)
Direction finding (AoA/AoD)
Periodic advertising with responses (PAwR)
LE connection subrating
LE power control
Speed: 125 Kbps, 500 Kbps,1Mbps, 2 Mbps
LE advertising extensions and multiple
advertising sets

Applications Of ESP32-C5-MINI-1-N4

Smart Home
Industrial Automation
Health Care
Consumer Electronics
Smart Agriculture
POS Machines
Service Robot
Audio Devices
Generic Low-power IoT Sensor Hubs
Generic Low-power IoT Data Loggers
Wi-Fi + Bluetooth Networking Card
