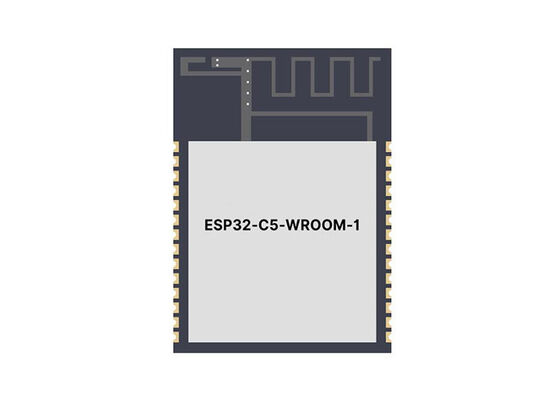

ESP32-C5-WROOM-1-N32R8 Wireless Communication Module Wi-Fi 6 And BT 5 Wireless Module

ESP32-C5-WROOM-1-N32R8 Wireless Communication Module Wi-Fi 6 And BT 5 Wireless Module​

Product Description Of ESP32-C5-WROOM-1-N32R8

ESP32-C5-WROOM-1-N32R8 is a high-performance, dual-band Wi-Fi 6 multi-protocol wireless module with on-board storage, and is one of the configurations with the highest storage capacity in the ESP32-C5 series. The ESP32-C5-WROOM-1-N32R8 is based on a high-performance RISC-V core and integrates tri-mode wireless connectivity comprising Wi-Fi 6 (2.4 GHz/5 GHz), BT 5.2 (BLE) and Zigbee/Thread 802.15.4. With a top-tier storage combination of 32MB of massive Flash memory and 8MB of PSRAM, it is specifically designed for high-end IoT applications requiring extensive firmware storage, large data caching, complex user interfaces, high-definition video streaming and edge computing.

Specification Of ESP32-C5-WROOM-1-N32R8

1. Processor and Memory
CPU: 32-bit RISC-V single-core processor, clocked at 240 MHz
On-chip memory:
ROM: 320 KB
HP SRAM: 384 KB
LP SRAM: 16 KB
External Memory:
Flash: 32 MB Quad SPI Flash (N32)
PSRAM: 8 MB SPI PSRAM (R8)
2. Wireless Connectivity
Wi-Fi 6 (802.11ax/b/g/n)
Frequency Bands: 2.4 GHz & 5 GHz dual-band, 1T1R
Data Rate: Up to 150 Mbps
Features: OFDMA, MU-MIMO, TWT (Target Wake Time), Beamforming
Bluetooth 5.2 (BLE)
Data Rate: 125 Kbps ~ 2 Mbps
Features: Long-range broadcasting, AoA/AoD positioning
IEEE 802.15.4
Support: Zigbee 3.0 & Thread 1.4
Data Rate: 250 Kbps
3. Physical and Electrical Characteristics
Dimensions: 18.0 × 27.5 × 3.3 mm
Operating voltage: 3.0 V to 3.6 V (typical 3.3 V)
Operating temperature: -40°C to +85°C
Moisture Sensitivity Level (MSL): 3
Antenna: On-board PCB antenna
4. Peripheral Interfaces
GPIO: 22 programmable I/O pins
Communication Interfaces: 2 × UART, 2 × I2C, 1 × SPI, 1 × I2S, USB 2.0 OTG
Analogue interfaces: 7-channel 12-bit SAR ADC, 2-channel DAC
Other: LED PWM (6 channels), RTC, DMA, timers, touch sensors

Applications Of ESP32-C5-WROOM-1-N32R8

High-end smart gateways: Whole-home smart multi-protocol gateways, industrial IoT edge gateways, enterprise-grade wireless controllers
Multimedia IoT Devices: IP cameras, video streaming terminals, smart speakers, HD digital photo frames, in-car multimedia systems
Industrial Automation: Industrial data loggers, remote PLC control, machine vision pre-processing, high-end sensor nodes
Consumer Electronics: High-end home appliances, portable medical devices, smart display panels, POS terminals, service robots
Edge Computing Nodes: Local data processing, AI inference, cloud protocol conversion, big data caching
