商品の詳細:
|
| 部品番号: | ESP32-C5HR8 | 頻度: | 2.4GHz、5GHz |
|---|---|---|---|
| データレート（最大）: | 150Mbps | GPIO: | 29 |
| 感度: | -101dBm | 電圧 - 電源: | 3V〜3.6V |

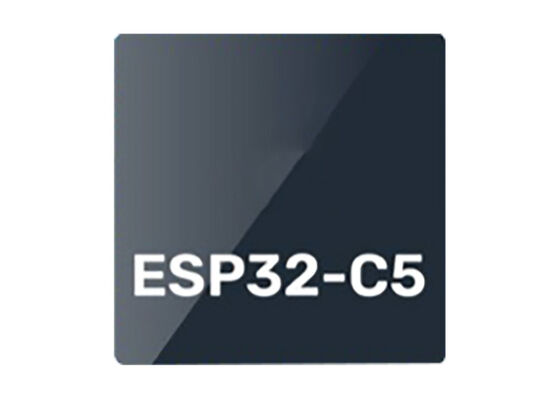

ESP32-C5HF4 WIFI Chip Ultra-Low-Power 150Mbps Dual-Band Wi-Fi 6 System On Chips
Product Description Of ESP32-C5HF4
ESP32-C5HF4 System on Chips (SoCs) support 2.4GHz and 5GHz dual-band Wi-Fi® 6, BT LE 5, Zigbee® 3.0, and Thread 1.4. The SoCs integrate a high-performance (HP) 32-bit RISC-V processor, a low-power (LP) 32-bit RISC-V processor, wireless baseband and MAC (supporting Wi-Fi, Bluetooth LE, and 802.15.4), an RF module, and multiple peripherals, with time-division coexistence among Wi-Fi, Bluetooth, and 802.15.4.
ESP32-C5HF4 SoCs feature 29 GPIOs and a comprehensive set of peripherals in a QFN package measuring 6mm x 6mm. Security features include secure boot, flash and PSRAM encryption, cryptographic accelerators, Access Permission Management (APM) hardware block, and Physical Memory Protection (PMP).
Specification Of ESP32-C5HF4
|
Frequency
|
2.4GHz, 5GHz
|
|
Data Rate (Max)
|
150Mbps
|
|
Power - Output
|
20dBm
|
|
Sensitivity
|
-101dBm
|
|
Memory Size
|
320kB ROM, 400kB SRAM
|
|
Serial Interfaces
|
ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, TWAI, UART
|
|
GPIO
|
29
|
|
Voltage - Supply
|
3V ~ 3.6V
|
|
Current - Receiving
|
89mA ~ 135mA
|
|
Current - Transmitting
|
109mA ~ 381mA
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
Features Of ESP32-C5HF4
Ultra-low-power MCU with 32-bit RISC-V single-core microprocessor
2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax), Bluetooth® 5 (LE), Zigbee, and Thread (802.15.4)
Support connection to external flash and PSRAM
29 GPIOs, rich set of peripherals
Security features: secure boot, flash and PSRAM encryption, cryptographic accelerators, Access Permission Management (APM) hardware block and Physical Memory Protection (PMP)
Applications Of ESP32-C5HF4
Smart home
Industrial automation
Health care
Consumer electronics
Smart agriculture
POS machines
Service robot
Audio devices
Generic low-power IoT sensor hubs
Generic low-power IoT data loggers
Wi-Fi + Bluetooth networking card
