商品の詳細:
|
| 部品番号: | TDA8547TS | 出力タイプ: | 2チャネル（ステレオ） |
|---|---|---|---|
| タイプ: | ABクラス | 最高の出力電力xは@負荷を運ぶ: | 1.2W x 2 @ 8オーム |
| 電圧 - 電源: | 2.2V~18V | 動作温度: | -40℃～85℃(TA) |

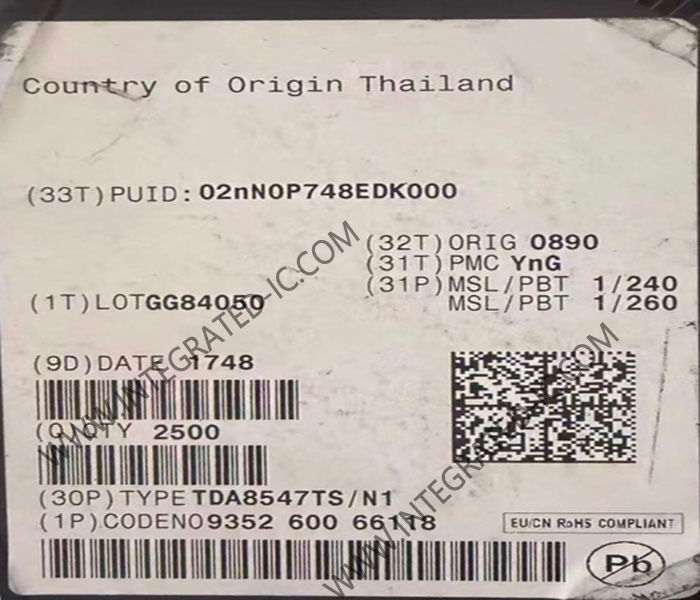

TDA8547TS Integrated Circuit Chip BTL Audio Amplifier With Output Channel Switching
Product Description Of TDA8547TS
TDA8547TS is a two channel audio power amplifier for an output power of 2 x 0.7 W with a 16 Ω load at a 5 V supply. At a low supply voltage of 3.3 V an output power of 0.6 W with an 8 W load can be obtained. The circuit contains two BTL amplifiers with a complementary PNP-NPN output stage and standby/mute logic.
Specification Of TDA8547TS
|
Type
|
Class AB
|
|
Output Type
|
2-Channel (Stereo)
|
|
Max Output Power x Channels @ Load
|
1.2W x 2 @ 8Ohm
|
|
Voltage - Supply
|
2.2V ~ 18V
|
|
Features
|
Depop, Mute, Short-Circuit and Thermal Protection, Standby
|
|
Mounting Type
|
Surface Mount
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
Features Of TDA8547TS
Selection between output channels
Flexibility in use
Few external components
Low saturation voltage of output stage
Gain can be fixed with external resistors
Standby mode controlled by CMOS compatible levels
Low standby current
No switch-on/switch-off plops
High supply voltage ripple rejection
Protected against electrostatic discharge
Outputs short-circuit safe to ground, VCC and across the load
Thermally protected
Applications Of TDA8547TS
Telecommunication equipment
Portable consumer products
Personal computers
Motor-driver (servo)
