商品の詳細:
|
| 部品番号: | CXD5605AGF | パッケージ: | WLCSP-49 |
|---|---|---|---|
| オプターテンプ: | -40℃～85℃ | 正確さ: | 1.0m |
| 消費電力 @ 1Hz:: | 7 MW | 入出力電圧: | 1.8V |

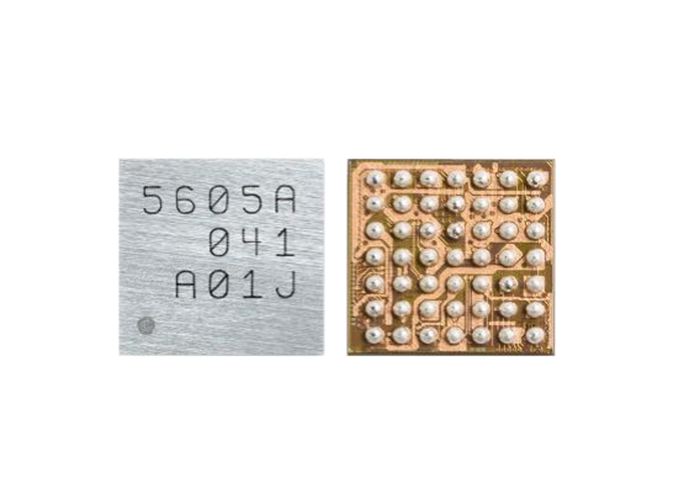

CXD5605AGF is a low power multi-constellation single band L1 GNSS receiver in WLCSP-49 package.
| Parameter | Value |
|---|---|
| Power consumption, @ continuous tracking | 6 mW |
| Support Constellation | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Sensitivity | Cold Start: -147dBm, Hot Start: -161dBm, Tracking: -161dBm |
| TTFF | Cold Start: -35s, Hot Start: 1s |
| UDR Support | No |
| Host Interface IO Voltage | 1.8 V |
| Core Voltage | 0.70 V |
| Assisted GPS | Yes |
| Geofence | Yes |
| Package | 3.1 × 3.0 mm, 49-pin WLCSP |
| Ext. FLASH memory | Not Required |
| Op. Temp. | -40 to 85℃ |
