商品の詳細:
|
| 部品番号: | MP87297GMWTH | 出力数: | 1 |
|---|---|---|---|
| 電圧 - 入力 (分): | 3V | 電圧 - 入力（最大）: | 16V |
| 電流 - 出力 (最大): | 100A | PWMロジック: | 3.3V |
| ハイライト: | 100A Output Current Integrated Circuit Chip,Quiet Switcher Technology DrMOS Solution,3V to 16V Input Voltage IC Chip |
||

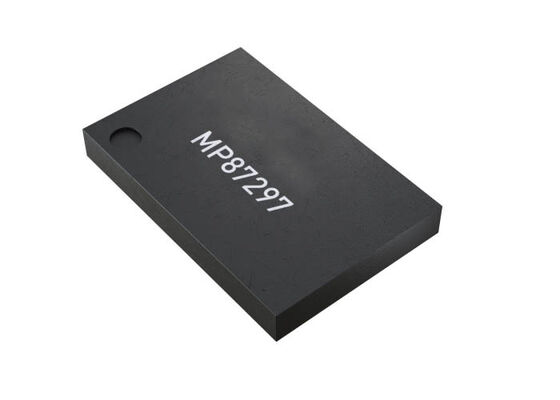

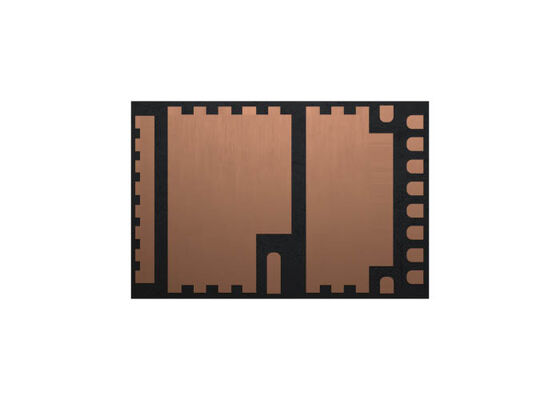

MP87297GMWTH Integrated Circuit Chip 100A Intelli-Phase DrMOS Solution With Quiet Switcher Technology Product Description Of MP87297 The MP87297 is a monolithic half-bridge with built-in internal power MOSFETs and gate drivers. It achieves up to 100A of continuous output current (IOUT) across a wide input supply voltage (VIN) range, operating from 100kHz to 1.5MHz. This device offers comprehensive features to simplify system design. It works with tri-state pulse-width
