商品の詳細:
|
| 部品番号: | T31SN12008NMFA | 入力電圧: | 9～53Vdc |
|---|---|---|---|
| 出力電圧: | 3.3～16.5Vdc | 出力電力: | 100W |
| 単体重量:: | 8g | 分離:: | 非分離 |
| ハイライト: | 100W DC/DC Converter Module,Non-isolated Integrated Circuit Chip,1/32 Brick DC/DC Converter Module |
||

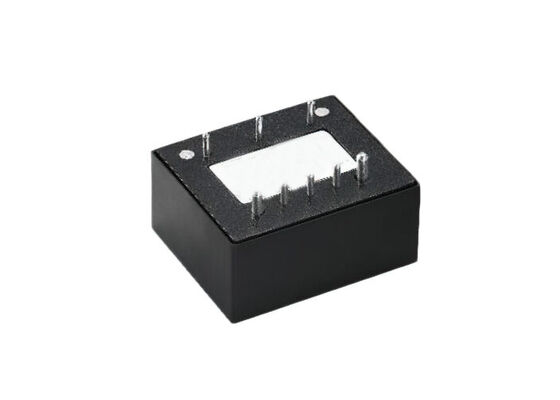

T31SN12008NMFA Integrated Circuit Chip 100W Non-isolated 1/32 Brick DC/DC Converter Module Product Description Of T31SN12008 The T31SN12008 is a 100W 1/32-brick non-isolated DC/DC power module, utilizing a DOSA-standard 1/32-brick package with through-hole mounting. It features an input voltage range of 9–53 VDC, an adjustable output voltage of 3.3–16.5 VDC, a maximum output current of 8 A, and a peak conversion efficiency of up to 98% (Delta). The module integrates remote on
