商品の詳細:
|
| 部品番号: | V48SC12007NRFA | 出力電力:: | 90 w |
|---|---|---|---|
| 出力電圧チャンネル1:: | 12V | 出力電流チャンネル1:: | 7.5 A |
| 絶縁電圧:: | 1.5 kV | 入力電圧:: | 36V～75V |
| ハイライト: | 90W DC/DC Converter,1/16 Brick Integrated Circuit Chip,12V 7A Isolated DC-DC Converter |
||

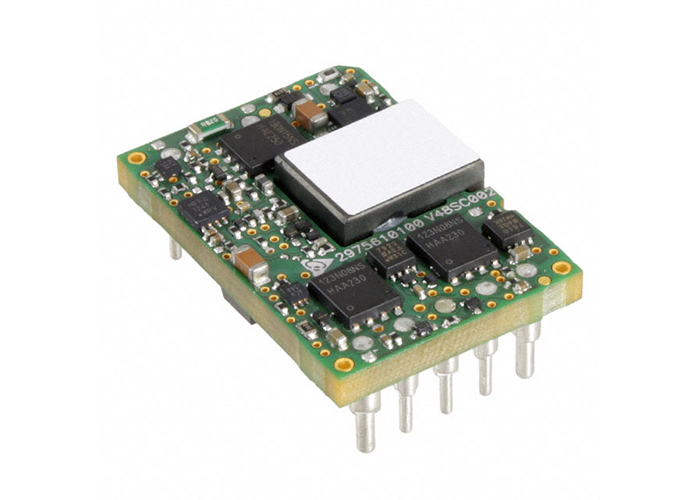

V48SC12007NRFA Integrated Circuit Chip 1/16 Brick 12V 7A DC/DC Converter Product Description Of V48SC12007 The V48SC12007 is an isolated DC-to-DC converter featuring a 1/16-brick standard package. It offers a wide input voltage range of 36–75 V DC (nominal 48 V bus), a fixed single 12 V output, a rated output of 7.5 A (commonly referred to as the 7 A version), and a maximum output power of 90 W. With module dimensions of 33 × 22.8 × 9.5 mm, it utilises the DOSA standard
